PlenoSol I diagram

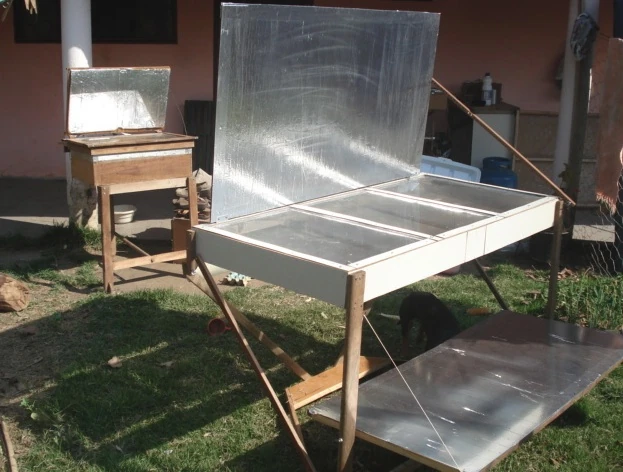

PLenoSol I side view

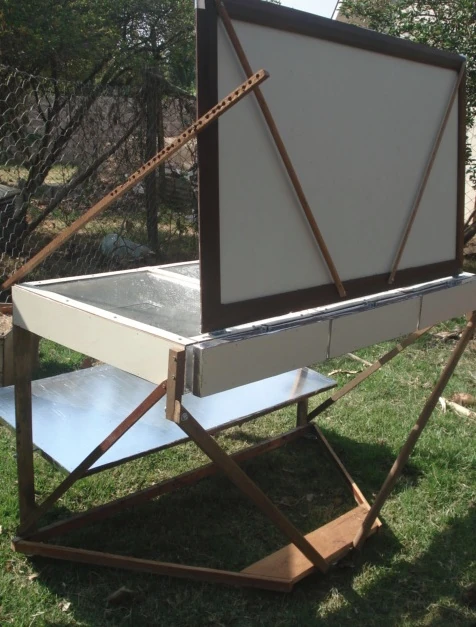

PLenoSol I rear view

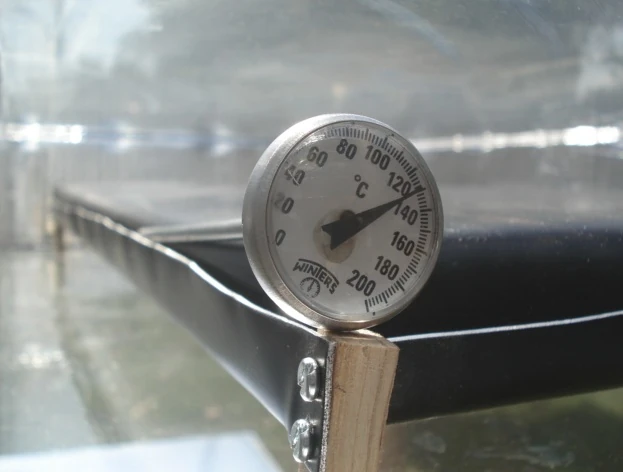

PLenoSol I temp. test
130°C reached in an empty oven
Paul HedrickAdded by Paul Hedrick

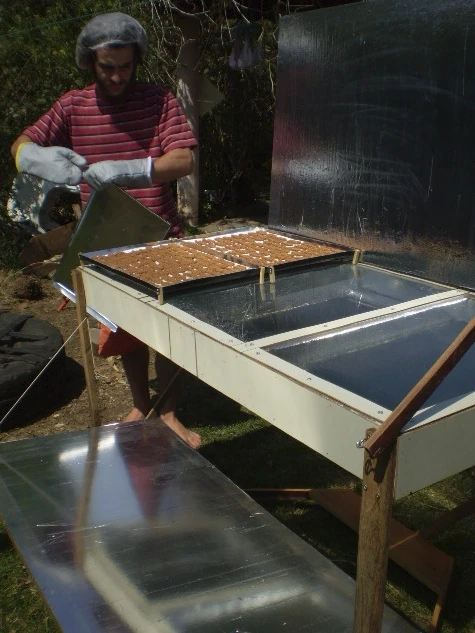

PLenoSol I in use
food being prepared for sale
Paul HedrickAdded by Paul Hedrick

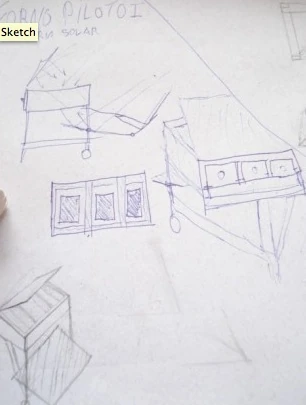

PLenoSol I early design sketches
early design sketches
Paul HedrickAdded by Paul Hedrick

The PlenoSol I is a combination solar panel cooker and a solar box cooker. It incorporates a raised, box style oven, which allows for additional light to be directed onto the oven bottom using a ground-level reflector. The oven also uses a top reflective panel, typical of most box cookers. The cooking space is divided into separate areas to permit foods be added or removed without disturbing other items. This is accomplished with rear entry oven doors.

The PlenoSol I appears to be as much about the possible food products that can be produced in quantiles for sale, as it is about simply promoting the oven design. With an empty oven, it was able to reach 130°C during the temperature test. Filled with food items, the oven reached 140°C.

Audio and videoEdit

See alsoEdit

External linksEdit


See Pleno Sol.
