Multi-Conical Solar Cooker

Talk0
1,847pages on
this wiki

The Multi-Conical Solar Cooker has been designed by Charles Glenn. He approached parabolic reflector design from the standpoint that, a cooker needs to only focus light onto a pot, and not a single point. Hence, the reflector needs not be true parabolic shape. He uses two stacked, flat cone shaped reflectors to gather the light. The projected pot target is a 28 cm (11") diameter.

Multi-Conical Solar Cooker support arm sketch, 8-8-13

Sketch of the oak support arm assembly.

Multi-Conical Solar Cooker

Multi-Conical Solar Cooker

Construction pieces prior to assembly,Multi-Conical Solar, 8-8-13

Pieces ready for assembly.

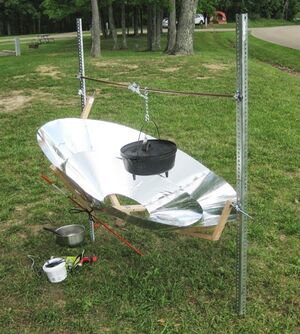

The concentric cone assembly is supported by two vertical metal tubes driven into the ground on either side. A cook pot is hung from a horizontal rod spanning between the two side tubes.

External linksEdit

ContactEdit

Chuck Glenn

Email: chuck.kv3g@gmail.com
