Joel Goodman is a research architect living in Wisconsin. After a few solar cooking experiences in the 1970-80s, he began studies of small-mid size solar kitchens using built-in fixed ovens (2003), inserted solar box cookers (2005), and augmented with building size nonimaging fixed reflector troughs with adjustable end reflectors (2007)(2009). Because of outgassing concerns from materials (insulation, glues, etc.) inside of augmented box cookers, and box cookers take up space in kitchens, mid-size kitchen studies began with thru-wall greenhouse type (HotPotTM, etc.) ovens (2006), and recently for small houses with thru-wall greenhouse type ovens combined with improved cook stoves, revealing house plan and solar access planning requirements. Additional studies are for exterior furniture fixed reflectors augmenting box cookers.

Square tube beam for PV pergolas June 22 2007
PV pergolas Square tube beam and natural round wood - www.PVO-Pergolas.com
Tom SponheimAdded by Tom Sponheim
HotPots above involutes-one-sided CPC 6-23-07
Hotpot-type cookers with involute reflectors and wall supported one sided cpc non-imaging reflector
Tom SponheimAdded by Tom Sponheim
Solar Cooker Cart with Greenhouse Type Ovens
Solar Cooker Cart with Greenhouse Type Ovens
Matt SponheimAdded by Matt Sponheim
Glass glued to CSEB June 2008
Glass glued to compressed stabilized earth block (CSEB) with thin amounts of silicone sealant on glass and CSEB.
Ben HedrickAdded by Ben Hedrick
Joel Goodman - Study model - Greenhouse type oven in lower nonimaging reflector frame
Study model - Greenhouse type oven in lower nonimaging reflector frame
Ben HedrickAdded by Ben Hedrick


Recent news and developments

Joel Goodman update, 1-31-13
  • January 2013: A mirror-tiled concrete base, with grill support bolts casted in, is a nonimaging concentrator shape segment to reflect solar radiation upwards to the underside of cooker-ovens.
  • December 2012: Joel Goodman describes and illustrates the constraints and opportunities for incorporating a permanent thru-wall solar cooker in home design. Wisconsin Thru-the-Wall Solar Cooker
Fixed reflector for solar oven, Joel Goodman, 10-24-12
A fixed curved reflector trough located above a stationary box cooker.
Paul HedrickAdded by Paul Hedrick
Fixed Nonimaging CPC-type Troughs, Joel Goodman, 1-8-13
Fixed Nonimaging CPC-type Troughs
Paul HedrickAdded by Paul Hedrick
  • October 2012: The adjacent drawing illustrates using a fixed one-sided reflector trough to augment a built-in solar cooker.
Joel Goodman - Thru wall oven kitchen plan, 10-1-11
Thru-wall oven kitchen plan
Paul HedrickAdded by Paul Hedrick
Joel Goodman Thru wall oven section, elevation 10-5-11
Thru-wall oven section
Paul HedrickAdded by Paul Hedrick
  • September 2011: When a thru-wall cooker counter height is higher, 36 inches/ 915mm above kitchen floor level, and the outdoor ground level is lower, 24-36 inches or more below the kitchen floor level, a more substantial construction is required to support the fixed reflector concentrator, possible with an integrated small storage space/room. And a higher rainwater drain permits water storage with a higher gravity flow.


  • May 2011:
Joel Goodman Thru-wall Mirror oven 5-31-11
Thru mirror wall oven for house kitchen
Paul HedrickAdded by Paul Hedrick
Joel Goodman thru wall cluster home plan 5-31-11
Schematic Cluster of House Plans
Paul HedrickAdded by Paul Hedrick


  • April 2011:
Joel Goodman solar restaurant concept
A solar restaurant concept
Paul HedrickAdded by Paul Hedrick
Nonimaging mid-size Solar Kitchen
Non-imaging mid-size solar kitchen
Paul HedrickAdded by Paul Hedrick
PLAN of nonimaging solar kitchen
Non-imaging solar kitchen plan
Paul HedrickAdded by Paul Hedrick
Nonimaging fixed reflector scoop section-2010
Non-imaging fixed reflector scoop griddle
Paul HedrickAdded by Paul Hedrick
Building integrated fixed reflector scoop griddle
Building integrated fixed reflector scoop griddle
Paul HedrickAdded by Paul Hedrick
  • January 2011: A building integrated fixed reflector non-imaging mid-size solar kitchen schematic for non-seismic locations combines: multiple thru-mirror wall greenhouse type ovens on one side, and on the other side a scoop type reflector concentrator.


Goodman, partial plan kitchen thru-wall
Partial plan of a house kitchen with a thru-wall oven.
Paul HedrickAdded by Paul Hedrick
  • The adjacent illustration of a partial house kitchen plan illustrates orientation and solar access requirements for a thru-mirror wall greenhouse type oven. The top edge of a nonimaging fixed reflector can align with different wall and roof house construction types and shapes.
Various fabrication-construction methods for a chair-size thru mirror wall oven nonimaging reflector concentrator include:
  1. Masonry substrates (compressed stabilized earth blocks, fired bricks, etc.) for gluing flat laminated glass mirror segments.
  2. Bent metal reflectors bolted to a center concrete pyramid with glued reflectors.
  3. Prefabricated injection molded plastic substrates for adhering reflectors.


  • December 2010: Joel has provided some conceptual ideas for incorporating thru-wall solar oven, and solar still installations.
Goodman, Thru wall oven.jpg
Thru wall oven
Paul HedrickAdded by Paul Hedrick
Goodman, Thru Wall water still
Thru wall water still
Paul HedrickAdded by Paul Hedrick
Goodman, solar kitchen studies
Larger oven possibilities
Paul HedrickAdded by Paul Hedrick

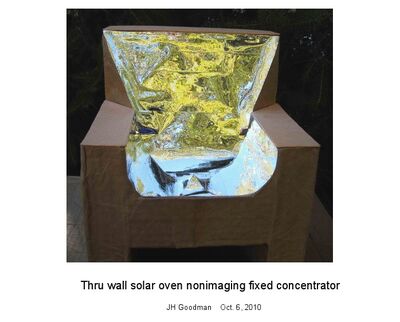

Goodman, Thru wall solar oven nonimaging fixed concentrator
Thru wall solar oven non-imaging fixed concentrator
Paul HedrickAdded by Paul Hedrick
Goodman top hinged reflector door 2005
Thru-wall reflector door flap-section (2005).
Paul HedrickAdded by Paul Hedrick

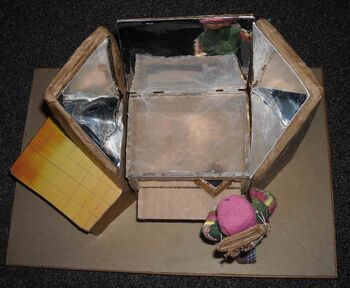

Goodman box cooker furniture
Box cooker augmenting fixed reflector furniture (2005).
Paul HedrickAdded by Paul Hedrick


Documents

  • June 2003: Goodman, Joel H., "Selected Building Integrated Active Solar Energy Structures", International Solar Energy Society Solar World Congress, Gothenburg, Sweden, June 14-19, 2003.
  • 2005: Goodman, J.H., (2005) Solar Cooking Kitchen Studies with Building Size Nonimaging Reflectors, ISES Solar World Congress, Orlando, Florida, 8-2005
  • August 2006: Goodman, Joel H., “Architectonic studies with building size nonimaging reflectors”, invited, Proceedings of the World Renewable Energy Congress IX, Florence, Italy, Aug., 2006.
  • 2007: Goodman, Joel H., (2007),“Architectonic Studies with Selected Reflector Concentrating Solar Collectors”, Journal of Green Building, Vol. 2 Number 2, Spring, College Publishing, pp 78-108.
  • January 2009: Goodman, Joel H., Building Size Fixed Reflector CPC Troughs and Bowls for Food Processing Facilities, Proceedings of the International Solar Food Processing Conference, ISES, Jan. 2009, Indore, India
  • January 2009: Building size fixed reflector CPC Troughs and Bowls for Food Processing Facilities - Joel Goodman
  • August 2012: Goodman, Joel H., Fixed Troughs, Heliostats, Bowls and Reused Wind Blades

Contact

Joel H. Goodman
P.O. 14, Dodgeville, Wisconsin 53533
USA

Tel: (608) 935-5483

Email: joelhgoodman3@hotmail.com
