[edit] News and Recent Developments

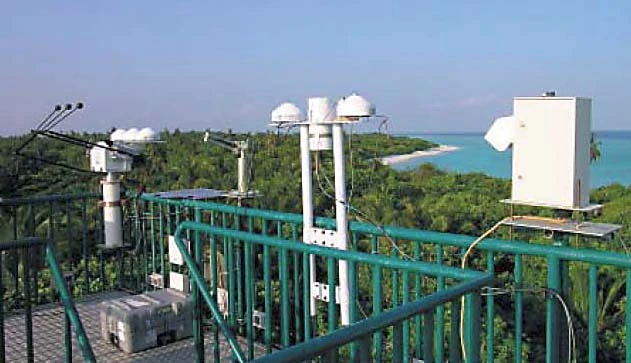

March 2008: A March 2007 white paper — by Dr. Veerabhadran Ramanathan, distinguished professor of climate and atmospheric sciences at the Scripps Institution of Oceanography, University of California, San Diego (USA), and Dr. Kalpana Balakrishnan, head of the Environmental Health Engineering department at Sri Ramachandra University, Chennai, India — outlines a project to reduce air pollution and global warming with community-wide use of solar cookers and improved biofuel cooking devices. The authors provide many referenced details about the negative health and environmental impacts of biomass burning and biofuel cooking, which they say are “the major sources of elemental carbon (EC) in India and other developing nations.” Carbon dioxide and EC, or soot, are the “two largest agents of global warming.” In India, where a reported 90 percent of cooking is done over wood- and dung-fueled fires, several studies have documented that “indoor air pollution leads to 400,000-550,000 premature deaths … from lower respiratory infections and chronic obstructive pulmonary disease. … The burden falls disproportionately on women and children, who inhale soot and other particles from smoke released by the burning of biofuels.” This soot combines with outdoor air pollution to form atmospheric brown clouds (ABCs) that “envelope most of India and the Indian Ocean … [leading] to a large reduction of sunlight at the ground and … atmospheric solar heating.” Since EC and other particles in ABCs have relatively short lifetimes compared to carbon dioxide in the atmosphere, the authors believe global EC reductions can “give us a decade or two to come up with viable and sustainable alternatives for fossil fuel combustion.” In the proposed “Project Surya,” solar cookers will be distributed in 65 villages in the Periyar PURA region in the Thanjavur and Pudukkottai districts of Tamil Nadu, benefiting approximately 6,500 households that currently use about 5 kilograms of firewood per day. Other fuel-efficient cooking devices will be available for use at night or on inclement days. The region has a strong base of local nongovernmental organizations and social networks, including women’s self-help groups, that will be useful for project implementation. Input and feedback from the communities will be gathered and used in a number of ways. Surveys of eating habits and estimated cooking fuel requirements will be conducted. Meetings with local leaders will be used to demonstrate a range of solar cooking technologies and to solicit feedback on their suitability and probability of acceptance in the communities at large. Educational outreach and incentives will be used to maximize use of clean cooking technologies. Installation, operation and maintenance training programs will be offered for those interested. Data collection will begin six months before the project launch, and will continue for at least a year after. Using special instrument towers, researchers will measure concentrations of particulates and soot content, as well as surface solar radiation. If feasible, indoor air pollution will be monitored using special equipment installed in select homes. (Alternatively, a mobile laboratory may be used.) Children will be involved as well, collecting data on cooking fuel use and cooking times, among other things. This data will help quantify the reduction in biofuel use and soot emissions. Though the authors state “it is difficult and costly to [accurately] quantify the disease burden due to indoor air pollution,” they “propose to build the evidence for expected health improvements … through documentation of exposure reduction and subsequently through reduction in incidence and severity of diseases.” The stated goals of the project, in order of importance, are: 1. To eliminate the detrimental health effects of indoor smoke; 2. To reduce the negative effects of EC in ABCs on the summer monsoon rainfall, Himalyan glacier retreat and agriculture; 3. To mitigate the global warming effects of CO2 and elemental carbon. Contact: Vanessa A. Balta Cook, Center for Clouds, Chemistry and Climate at SIO-UCSD. Tel: 858-534-8815, e-mail: vbaltacook@ucsd.edu, Web: http://www-ramanathan.ucsd.edu/ProjectSurya.html

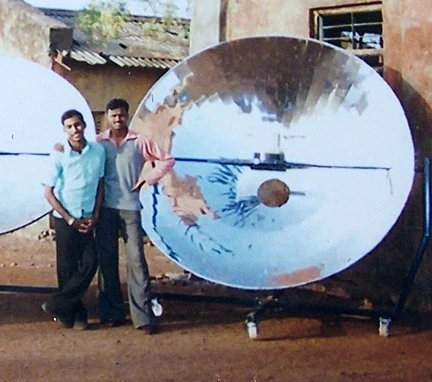

The new 2.3 meter parabolic Community cooker ready for operation

November 2007: Professor Ajay Chandak, of Promoters and Researchers in Non-Conventional Energy (Prince India), reports completion of an ambitious project to manufacture, transport, install and commission over 300 large parabolic solar cookers at tribal schools in the Indian state of Maharashtra. The project was coordinated by Chandak, with manufacturing by PRINCE trainees M/s Essential Equipments and three contractual manufacturers. Twenty-five trained teams carried out installation and testing of the cookers. The entire process took just 45 days, and resulted in 100 schools being equipped. The Community solar cookers, as Chandak refers to them, are 2.3 meters in diameter and powerful enough for a 22-liter pressure cooker. Each cooker cost around Rs. 26,000 ($650) and comes with a large pressure cooker and other accessories.

October 2007: Finally the awareness to harness Solar energy and use it to cut costs and save money has arrived in Mumbai. Cut Cost Technologies have introduced the Fuel-Free Cooker in Mumbai, INDIA. Surprisingly its use, in Mumbai, is going to be pioneered by an NGO which is already at the fore-front of adopting renewable energy Sources. The Fuel Free Cooker is an addition to their other renewable energy exploitation. They already have in place solar water heaters and a bio gas plant. Surely more will follow the example of this NGO and save money by cutting costs....because the money saved will be used for the larger good of the society.

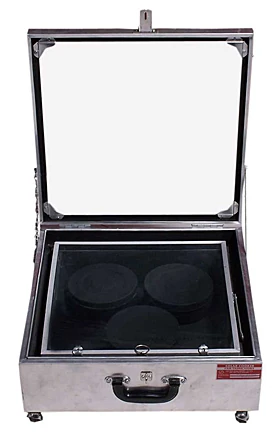

April 2007: Fair Fabricators has been honored for its "outstanding performance" in India’s solar cooker program. The award was sponsored by the governmental Ministry of Non-Conventional Energy Sources (MNES). Fair Fabricators reports that it has manufactured and sold more than 100,000 solar cookers in the last two decades. The company is a leading manufacturer of aluminum-bodied solar box cookers, but also manufactures parabolic-type solar cookers and expects to begin production of solar box cookers made of fiber-reinforced polymer (FRP). Contact: Fair Fabricators

April 2007: Sankha Subhra Datta has designed a solar box cooker that is suspended at two points within a support frame, allowing for rotation of the entire cooker around a horizontal axis from 5 to 70 degrees with respect to the ground. The cooker can therefore maintain a nearly 90-degree angle to the light as the sun's position in the sky changes. The cooker is rotated around a horizontal axis by repositioning a bar that is attached to the lower front corners of the box between any of 14 slots spread across the base of the frame. Datta says this system has advantages over solar box cookers with tilt-adjusting rear legs — a greater range of rotation can be achieved, and the cook can rotate the unit smoothly without having to lift its entire weight and risk food spillage. Another design feature that helps to prevent food spills is the weighted, rotating cooking tray that keeps the pot horizontal at all times. Regardless of cooker rotation, the pot is always at the center of the cooker because the tray rotates on the horizontal axis of the pot. "This tray holding arrangement is designed for proper utilization of top and bottom reflectors at every inclination … which is not possible in simply suspended tray arrangements [because] shifting of pot location from the central position of the inner box due to the rotation of pot around pivots," Datta says. The cooker frame sits on casters for easy rotation around the vertical axis. The outer box is constructed of galvanized iron and the inner box is aluminum, with glass wool insulation in between. The glazing is double-paned glass with a two-centimeter air gap.

February 2007: New Delhi, IPS article Indoor Air Pollution - Silent Killer of Women Over 1.5 million females die prematurely every year by inhaling poisonous fumes as they cook or heat their homes...
November 2006: Rural Development Trust, a nonprofit organization near Chennai, has assembled 30 solar box cookers and distributed them to villages in the area for demonstrations and awareness creation. The Trust has prepared simple Tamil-language instructions on how to build a solar cooker and use it to cook common dishes like rice and lentils.

Snow-capped mountains can be seen in the background of the solar cooking system

November 2006: An article by M.A. Siraj, appearing in the November/December 2005 issue of Refocus magazine, highlights a solar cooking system installed by Gadhia Solar Energy Systems for the Indian Army. Here is an excerpt: "The Indian Army has commissioned a giant solar cooking system at Leh in the state of Jammu and Kashmir. Located in the Ladakh region at 4,000 meters, it is said to be the world’s highest altitude solar cooking system with the capacity to prepare food for 500 army personnel. Mr. Deepak Gadhia of Gadhia Solar Energy Systems … [said] this was one of the most challenging projects undertaken by his company as the team had to work in extremely adverse climate conditions such as snow, cold winds and sub-zero temperatures. … Prior to solar cooking being introduced, the army kitchen at this base was using nearly 50 kilograms of liquefied petroleum gas and 70 liters of diesel each day to cook food. Described as an icy desert, the region has no vegetation and hence no firewood. Diesel and gas cylinders are transported by air for the Army and the tribal population. The solar cooking system has halved the consumption of these fuels. Gadhia says the heat is generated by five pairs of 9.5 square meter parabolic reflectors which produce steam that is piped down to the kitchen for cooking purpose." Due to the cold climate, the system requires thick pipe insulation, and must be regularly drained of water when not in use.

Professor Ajay Chandak accepts a renewable energy award from Mr. Vinay Kore, the Maharasthra state minister for non-conventional energy, as other dignitaries look on

November 2006: Professor Ajay Chandak of Promoters and Researchers In Non-Conventional Energy (PRINCE) won a "Renewable Energy Award 2005" from the Maharashtra Energy Development Agency. Of the state-level award for excellence in renewable energy, Prof. Chandak says, "Such awards are small milestones on our way and keep us pushing forward." He thanks friends from around the world for their contributions, adding, "They are equal partners in the award." Contact: Professor Ajay Chandak, Prince India

Deepak (left) and Shirin Gadhia

August 2006: Deepak and Shirin Gadhia, of Gadhia Solar Energy Systems Pvt. Ltd., were awarded the "Business Leadership Award 2005 for Solar Thermal" at the annual International Congress on Renewable Energy (ICORE) in Hyderabad last February. The award was received from the Solar Energy Society of India (SESI), a member of the International Solar Energy Society (ISES). "Like all pioneering work, initially the path had been a slow, up-hill process," said the Gadhias. "But now, due to ever increasing energy costs and environmental catastrophes like global warming, it makes mankind realize that clean, renewable, sustainable technologies are the best possible option." Upon winning the award, the Gadhias acknowledged Dr. Dieter Seifert and Wolfgang Scheffler, whose solar concentrator cooking technologies are promoted by Gadhia Solar.

August 2006: Solar Alternatives and Associated Programmes (SAAP) is a nonprofit, charitable society committed to environmental protection and empowerment of the downtrodden through solar energy applications, particularly solar thermal technologies. Run by the Jesuits, and led by Fr. M.M. Mathew, SAAP conducts research, development, fabrication and installation of a variety of solar devices, including household solar cookers, community solar cookers, solar steam cooking systems, and solar food dryers. They have even developed a solar chapatti cooker. Many of SAAP's devices rely on solar concentrator technologies developed by Dr. Dieter Seifert and Wolfgang Scheffler, and the Solar Bruecke organization. SAAP empowers socially and economically depressed groups through employment opportunities as fabricators, as well as vocational training programs affiliated with the National Institute of Open Schools. Contact: Solar Alternatives and Associated Programmes

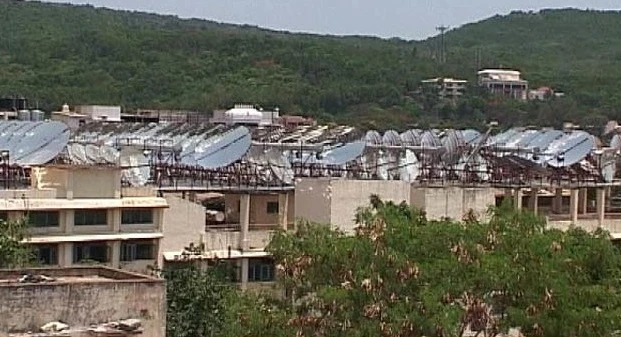

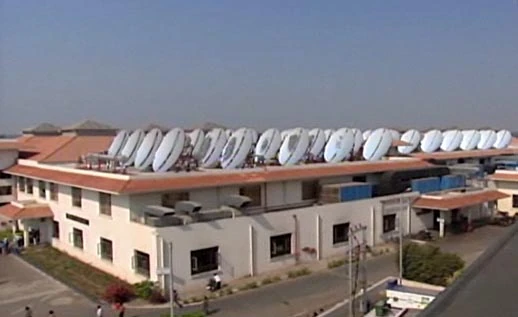

Solar steam cooking system mounted atop Tirumala Tirupati Devasthanam

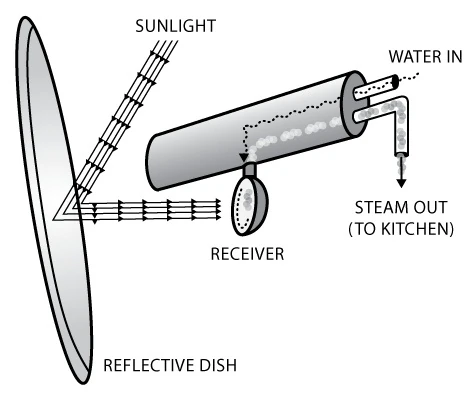

March 2006: Representatives from hotels and educational institutions gathered recently in Tirupati, Andhra Pradesh, to learn about solar concentrating systems for steam generation that can cook thousands of meals daily. Representatives from other industries that could benefit from solar steam generation also attended. The meeting was organized by the Non-Conventional Energy Development Corporation of Andhra Pradesh (NEDCAP) and sponsored by the Ministry of Non-Conventional Energy Sources (MNES). Mr. Deepak Gadhia, Managing Director of Gadhia Solar, detailed how solar concentrating systems work and mentioned several industrial uses in addition to cooking: incineration, waste water evaporation, solar desalination, solar air conditioning and solar space heating, to name a few. Two testimonials were provided. First, Mr. Malliah, Vice President of Sanghi Employee Welfare Association, told of how he attended a lecture by Mr. Gadhia a few years earlier and was convinced that his organization needed to install such a system, given that they are always looking at ways to reduce costs, improve efficiencies and protect the environment. Their system, which cost about $12,500 after a 50% government subsidy, is working well. Costs were recouped within two years. Next, Mr. Kachwaha told of a system that was installed in a silk processing plant. Not only did this system reduce energy costs, but it also reduced noise and air pollution within the plant, resulting in a better work environment and greater productivity. The system has since been repurposed from solar steam generation to solar water heating, with a daily capacity of 1600 liters. After the gathering, participants toured the world’s largest solar steam cooking system at Tirumala Tirupati Devasthanam. The system is comprised of 106 rooftop-mounted parabolic concentrators that generate steam for cooking up to 30,000 meals daily. The gathering was covered in a number of newspapers and appeared on television news stations. Contact: Jagadeeswara Reddy

January 2006: Professor Ajay Chandak of Promoters & Researchers In Non-Conventional Energy (PRINCE) led a workshop titled “Manufacturing Parabolic Solar Cookers and an introduction to renewable energy technologies.” Twenty people from eight states participated in the workshop, mostly renewable energy professionals. Mr. Chandak hopes that several of them will consider manufacturing parabolic solar cookers in their own states. Large community-size cookers, two meters or more in diameter, proved quite popular. These cookers can cook meals for 30-50 people. Smaller, family-side cookers were also shown, as were related technologies like solar food dryers. Contact: Ajay Chandak, Prince India

[edit] The History of Solar Cooking in India

For more details on this topic, see History of solar cooking in India.

India, Asia's second largest country, next to China, has also the second largest number of solar cookers. The situation in India is more complex than that of China. More is also known about Indian programs. The Third World Conference on Solar Cooking was held in India, permitting the history and progress of solar the technology's uses to become better known around the world.

An official government report informs the reader that the Ministry of Non-Conventional Energy Sources (MNES), Government of India, was established in 1982, first as a Department and later as a Ministry. The Ministry's mandate extends well beyond solar cooking, including fuel efficient wood and charcoal stoves, power from other renewable sources, energy from industrial wastes, research and development in a number of related fields (photovoltaics, biogas, and pollution prevention, for example). MNES began seriously to promote solar cooking in the early 80s, with an initial focus almost entirely on the box cooker.

The population of India is roughly 70% rural. MNES states that "cooking accounts for a major share of the total energy consumption in rural homes (Singhal, correspondence, 2003, p. 1). Sources of that energy are largely fuelwood, animal dung, or crop residues, all of which emit smoke, pollute the atmosphere, and are deterimental to health and safety of family members, particularly women. Fuelwood is become scarcer each year. FAO data show that 21.6% of the Indian land mass is forested, and conservation efforts are in place to reverse previous loss. The effort is affected by the large and dense population and a slowing but still substantial birth rate (continuing to increase at 1.7% per annum, or 17% in a decade). Solar cooking has been viewed as one way to alleviate a number of India's problems and as such was supported by government efforts.

The Press Bureau of the Government of India reported in 2007 that there are 525,000 solar cookers installed in India.[1] The Press Bureau also reported in 2003 that, "The solar cooker programme has been expanded by introducing new designs for community use. Three solar steam cooking systems based on automatic tracking concentrating collective technology for cooking food for 600-3,000 people per day, and one system based on ‘Solar Bowl’ technology, have been installed. World's largest solar steam cooking system has been installed at Tirumala Tirupati. The system is designed to cook two meals for 15,000 persons in one day. Another system for 2,000 people was erected at Brahmakumaris Ashram in Gurgaon in July, 2002. Three community cookers for indoor cooking have been installed at a training hostel and an NGO’s establishment in Leh. In all, six such systems have been installed under the MNES demonstration scheme. A total of 500 dish solar cookers and 60 community solar cookers have been installed so far."[2]

[edit] Climate, Culture, and Special Considerations

Solar Cookers International has rated India as the #1 country in the world in terms of solar cooking potential (See: The 25 countries with the most solar cooking potential). The estimated number of people in India suffering from fuel scarcity but with ample sunshine in 2020 is 157,400,000. In December 2007 the Indian Government instituted a program of rebates on various renewable energy devices including solar cookers. Solar cooking has been recommended even in the Rig Veda which says: "All edibles ripened or cooked in the sun’s rays change into super medicine, the amrita."
