Ideas for low-tech solar tracking

1,768pages on
this wiki
Comments0
Last updated: 13 May 2016
Revolutionary Solar! Stirling engine mount Liquid piston tracker06:29

Revolutionary Solar! Stirling engine mount Liquid piston tracker

See Tracking Solar Accumulating Barbecue].

800by566Water Based Solar Tracker Diagram

Brian White's diagram of the dripper tracker which is potentially a highly accurate waterclock. Graphic by Mike Murphy.

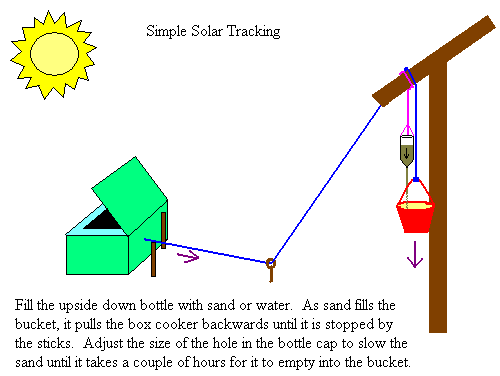

SimpleSolarTracking

qtsunshine@hotmail.com's design for a simple system to reposition a solar cooker automatically while unattended.

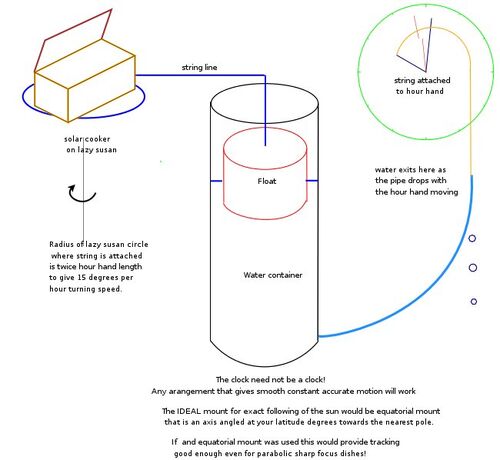

Clocktracker600

]Tracking mechanism that uses the hour hand of a clock to control the turning of a solar cooker

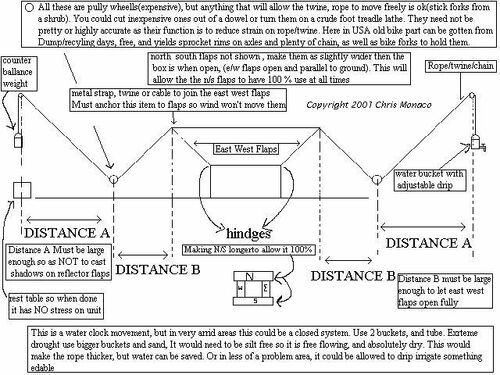

Solar Water Clock Drive

A plan for a solar water clock drive submitted by ChrisM1111@aol.com

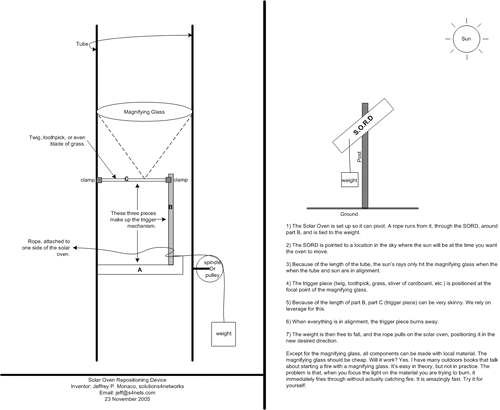

Solar Oven Repositing Device V1-0

Solar oven repositioning device designed by Jeff Monaco. Tom Sponheim suggested using wax melting instead to remove the need for a magnifying glass.

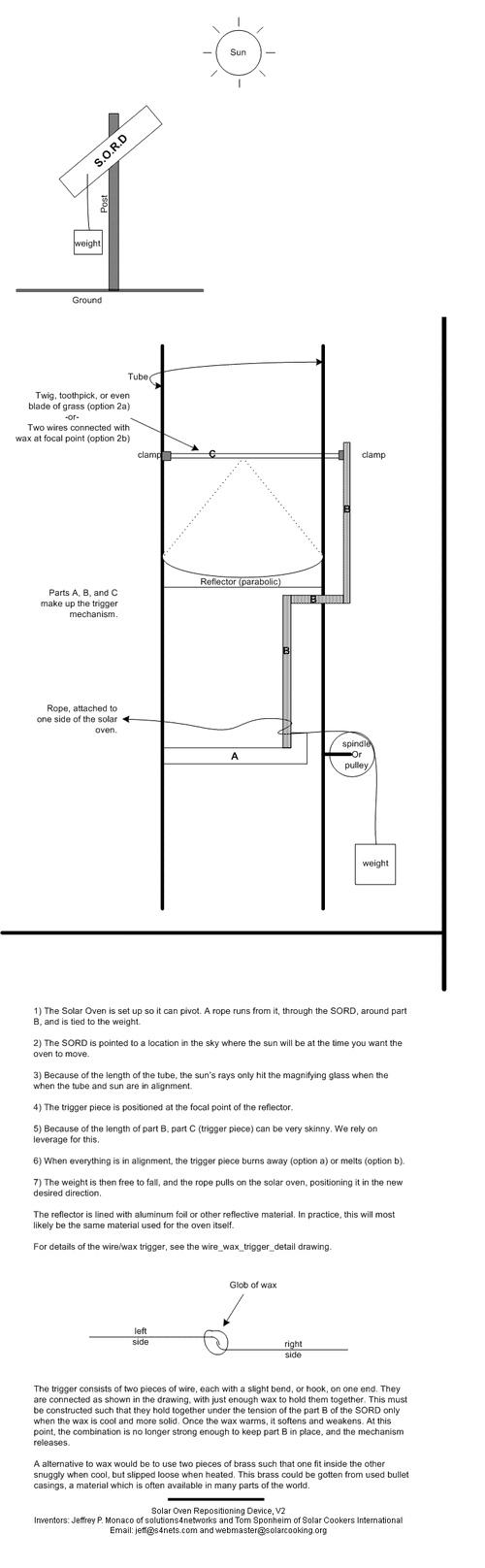

SolarOvenRepositingDevice V2-0

Tom Sponheim suggested using wax melting instead to remove the need for a magnifying glass

Golfballs

A revolving base can be made using golfballs.


Gimp equa float pistons

Provisionally called liquid piston tracker

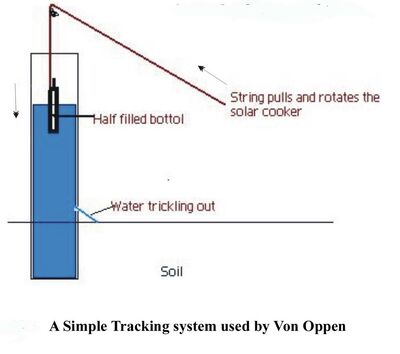

Von Oppen tracking diagram

The Von Oppen system uses a half filled bottle to act as a floating piston, which drops when the water is slowly drained from the reservoir.
