(Kirkpatrick Solar Cooker (Kirk-ook) variation)
(Kirkpatrick Solar Cooker (Kirk-ook) variation)
Line 13: Line 13:

[[File:Kirk-Cook_(Top)_(480x640).jpg|thumb|275px|Kirk-ook variation]]

[[File:Kirk-Cook_(Top)_(480x640).jpg|thumb|275px|Kirk-ook variation]]

[[File:Kirk-Cook_(48x40).jpg|thumb|450px|Kirk-ook construction template]]

[[File:Kirk-Cook_(48x40).jpg|thumb|450px|Kirk-ook construction template]]
Mark Evans Kirkpatrick has offered modifications to the Haines Solar Cooker, known as the Kirk-ook. The base reflector is slotted through the rear reflector to provide more stability for the cooker in windy conditions (with less base material extended and more base material supported). The bottom-rear of the cooker can be supported with rocks as shown in the picture. By extending the sides you will create a wave-like formation focusing more rays in the center for higher effectiveness (depending on the angle of the sun). Higher temperatures can be reached using a turkey bag around the pot & lid (alleviating the effect from high winds) with the plastic film (elevating the pot 2") . The plastic film can be coated with UV agents to avoid discoloration and distortion. Other trasnparent plastics are being tested for higher heat resistance. It is recommended using clear packaging tape to cover each area that is cut (easier when applied prior to cutting out the design) on each side of the cooker. Tape can also be added to other areas prone to wear-and-tear (mainly the latching traingles that replaced the Velcro or binder clips).
+
Mark Evans Kirkpatrick has offered modifications to the Haines Solar Cooker, known as the Kirk-ook. The base reflector is slotted through the rear reflector to provide more stability for the cooker in windy conditions (with less base material extended and more base material supported). The bottom-rear of the cooker can be supported with rocks as shown in the picture. By extending the sides you will create a wave-like formation focusing more rays in the center for higher effectiveness (depending on the angle of the sun). Higher temperatures can be reached using a turkey bag around the pot & lid (alleviating the effect from high winds) with the plastic film (elevating the pot 2") . The plastic film can be coated with UV agents to avoid discoloration and distortion. Alternate transparent plastics are being tested for higher heat resistance (*email suggestions). It is recommended using clear packaging tape to cover each area that is cut (easier when applied prior to cutting out the design) on each side of the cooker. Tape can also be added to other areas prone to wear-and-tear (mainly the latching triangles that replaced the Velcro or binder clips).

{{clr}}

{{clr}}


Revision as of 03:06, January 25, 2013

Haines Cooker (Side)

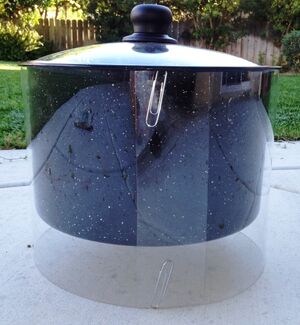

Haines Polycarbonate Sleeve

The Haines Polycarbonate Sleeve eliminates the nylon cooking bag commonly used in solar cooking.

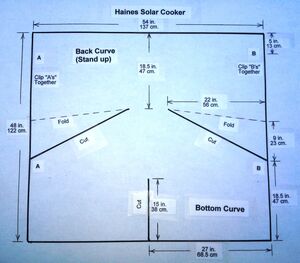

Template for Haines Cooker

Template for Haines Cooker

Drawing of Haines Cooker

Assembly diagram for the Haines Cooker

The Haines Solar Cooker combines the power of a Funnel cooker with stability of the traditional CooKit. It has been designed by Roger Haines of San Diego, California, USA. The cooker is made in the USA from a mylar-coated bubble insulation material that is sold "off-the shelf" at Lowe's Home Centers in 4-foot by 25-foot rolls.  The material can also be ordered on-line under different brand names.  The material is strong (Roger has driven his car over it without breaking the bubbles) and it is.unaffected by boiling water.  The cooker is made from a single 48" by 54" rectangle of bubble material, and requires only three cuts with ordinary scissors for cooker assembly. In testing in November, 2012 in San Diego, this cooker heated an empty pot to a sustained 380 degrees Fahrenheit (193 degrees Cesius) and heated a liter of water from room temperature to boiling in less that an hour.

The base of the cooker should be anchored with rocks or bricks as shown in the photo.  The two curves of the cooker form an oval funnel that can be made quite stable in the wind by the addition of an oval wind screen made of clear plastic. The windscreen also makes this panel cooker into a "quasi-box" cooker.  When the sun is high, the cut at the front bottom of the cooker can be overlapped and clipped together with a binder clip to concentrate more sun on the cooking pot.

The Haines Polycarbonate Sleeve eliminates the nylon cooking bag commonly used in solar cooking. This sleeve is a cylinder of stiff polycarbonate or other high-temperature plastic film (about the stiffness of card stock paper), which encloses the bottom and sides of the pot but not the top.  The cylinder can be held together with paper clips, which allows its diameter to be adjusted to fit a variety of cooking pots  The pots must be round, with no handles, and must have a top rim that can rest on the top of the cylinder. The cylinder elevates the pot above the surface of the cooker, allowing the sun's rays to bounce off the reflective surface of the cooker and be absorbed by the bottom of the cooking pot. It also provides an insulating "greenhouse" making a traditional cooking bag unnecessary. Haines's testing indicates that a pot with a glass lid retains more heat than one with a metal lid.

Kirkpatrick Solar Cooker (Kirk-ook) variation

Kirk-Cook (L-Side) (480x640)

The bottom reflector slots into the rear reflector of the Kirk-ook variation

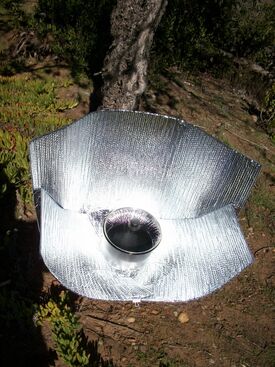

Kirk-Cook (Top) (480x640)

Kirk-ook variation

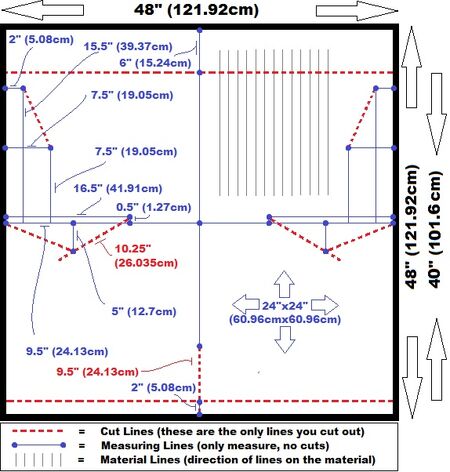

Kirk-Cook (48x40)

Kirk-ook construction template

Mark Evans Kirkpatrick has offered modifications to the Haines Solar Cooker, known as the Kirk-ook. The base reflector is slotted through the rear reflector to provide more stability for the cooker in windy conditions (with less base material extended and more base material supported). The bottom-rear of the cooker can be supported with rocks as shown in the picture. By extending the sides you will create a wave-like formation focusing more rays in the center for higher effectiveness (depending on the angle of the sun). Higher temperatures can be reached using a turkey bag around the pot & lid (alleviating the effect from high winds) with the plastic film (elevating the pot 2") . The plastic film can be coated with UV agents to avoid discoloration and distortion. Alternate transparent plastics are being tested for higher heat resistance (*email suggestions). It is recommended using clear packaging tape to cover each area that is cut (easier when applied prior to cutting out the design) on each side of the cooker. Tape can also be added to other areas prone to wear-and-tear (mainly the latching triangles that replaced the Velcro or binder clips).

See also

Contact

RogerHaines

Roger Haines

Roger Haines

Tel.: +1 (858) 736-5505
Email: bhaines@san.rr.com

Mark Evans Kirkpatrick

Email: markevanskirkpatrick@gmail.com
