This article is about an entity that either no longer exists or that may no longer be active in solar cooking promotion. It is retained here for archival purposes.

Blazing Tube Solar Appliance

photo is of an early prototype

The Blazing Tube Solar Appliance is a trough-style solar cooking device utilizing a high efficiency solar vacuum tube to absorb the solar radiation concentrated by a non-tracking compound parabolic reflector. Even high temperature operation is achievable.

Joining the system’s solar components with a separate highly insulated round cook-box, further ensures Blazing Tube’s high temperature maintenance during cloudy intervals and even into the evening hours. Using no moving parts and constructed of metal and glass components, the BTSA has a long service life expectancy. Its unique energy conservation characteristics allow it to operate under marginal weather conditions, during which most other solar cookers fail. Normally operating at a temperature above 300°F (148.8˚C.), foods can be fried, baked and boiled throughout daylight hours, and maintained at hot serving temperatures above 160°F (71˚C) late into the evening hours.

Development[]

Blazing Tube Solar Appliance side

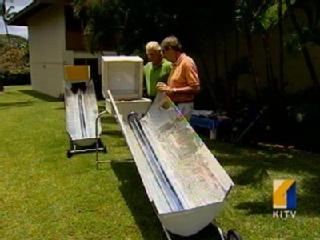

John Grandinetti demonstrates his solar cooker

In May 2008, John Grandinetti publicized his version of an indirect solar cooker through an interview with television station KITV. The interview was picked up by affiliate stations and eventually broadcast on CNN.

Evacuated tubes have been used in solar hot water systems, and are considered a mature, efficient technology. By replacing the copper pipe and fin found in similar previous models, John Grandinetti that his indirect cooker design can reach temperatures of 400°F in direct sunlight. The Grandinetti design replaces water with oil for the heat transport mechanism in order to sustain these temperatures.

The large diameter vacuum tube (120mm OD) houses a separate sealed glass tube inside (triple cavity), which displaces most of the interior liquid volume. The resulting fluid space allows for only one gallon of vegetable oil to perform the heat transfer function to the heat retention cook box. The steel cook pan, housed within the insulated cook box, is specially designed to integrate with the glass vacuum tube. A silicone coupling hose (120mm ID) is band clamped to both the glass tube and the cylindrical portion of the steel pan outer dimensions. The manufacture indicates that the unit, placed in the sun at 8:30am will achieve a cooking temperature (300° F) by 9:30am and cooking, water pasteurization and autoclaving can be readily achieved throughout the remainder of the solar day. The heat retention cook box and the thermal mass of oil and food within, permits cooking to continue through prolonged cloudy intervals and allows deliverery of hot cooked food as late as 10pm. In addition, the manufacturer states that the unit can be used with a 15-liter stove-top autoclave, which can achieve the required 17psi steam pressure within 40 minutes of placement within the insulated cook box. Frying, baking, boiling and steaming have all been successfully accomplished.

Mr. Grandinetti worked through his non-profit organization Developing World Solar, to have his design placed into production.

News[]

  • April 2021: Blazing Tube Solar, the manufacturer, ceased production of this cooker in 2018.
UNCHR supplied Blazing Tube solar cooker in Burkina Faso, 2-9-15

A refugee in Burkina Faso uses a Blazing Tube solar cooker supplied by UNCHR. - UNCHR

  • June/July 2017: Isabella Troconis conducted a field research in Goudoubo Refugee Camp, one of the camps in Burkina Faso where Blazing Tube solar cookers were distributed. Based on the United Nations High Commissioner for Refugees (UNHCR)'s reports, only 2% of recipients in Goudoubo camp are still using the Blazing Tube solar cooker as a secondary option, and none as the primary choice for cooking. However, she visited on a daily basis for one month the zones in Goudoubo where some women were presumably still using the Blazing Tube solar cookers and never witnessed a single women cooking with it. Read more about her findings here.
  • February 2015: A refugee woman in Burkina Faso cooks rice with a Blazing Tube solar cooker. The stove is assembled in the USA and costs around $100USD. Oliver Lompo, UNHCR Environment Officer in Burkina Faso explained the impact the stove has had. “Beforehand, refugee women had to walk several hours a day to collect firewood. Since we have a lot of sunshine, the stove allows them to cook without spending any more time on firewood collection. And, more importantly, it does not produce any smoke - people love it.” - UNCHR
